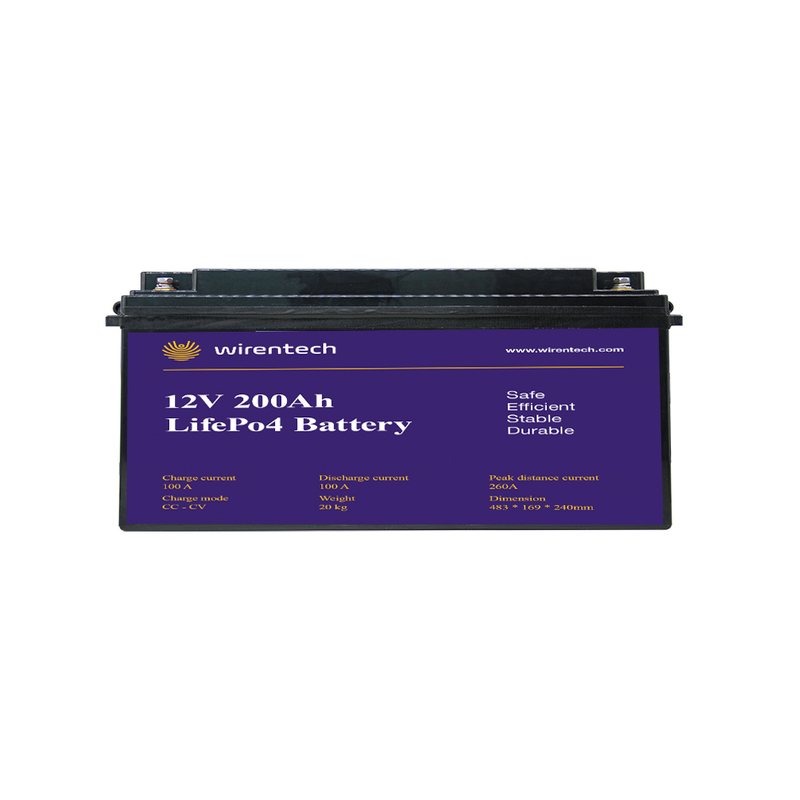

WT12200
WIRENTECH
| ItemsItems | Parameter |
| Battery Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Energy | 2.4KWh |
| Internal Resistance | ≤20mΩ |
| Series & Parallel Application | up to 4 series 4 parallel |
| Limited Charge Voltage | 14.6±0.2V |
| Floating Charge Voltage | 13.8±0.2V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 10.0V |
| Standard Charge Current | 50A |
| Max. Charge Current | 100A |
| Standard Continuous Discharge Current | 50A |
| Max. Continuous Discharge Current (<30min) | 100A |
| Pulse Discharge Current (<3s) | 260A |
| Cycle Life | > 6000 cycles |
| Dimension (mm) | Length: 483±2 Width: 171±2 Height: 240±2 |
| Weight | 20±0.2Kg |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended Operating Temperature | 15~35℃ |
| Self-Discharge Rate (Residual capacity) | ≤3%/month; ≤15%/years |
| Self-Discharge Rate (Reversible capacity) | ≤1.5%/month; ≤8%/years |
| Storage Temperature & Humidity Range (Less than 1 month) | -20~35℃, 45~75%RH |
| Storage Temperature & Humidity Range (Less than 3 months) | -10~35℃, 45~75%RH |
| Recommended Storage Temperature & Humidity Range | 15~35℃,45~75%RH |
1.Over five years efforts have been engaged.
2.Long life cycle, >6000 times at 80% DOD
3.Without heavy metals and environment friendly
4.Maintenance free,there is no memory effect
5.Internal BMS with full protection,battery has high voltage protection with higher reliability
