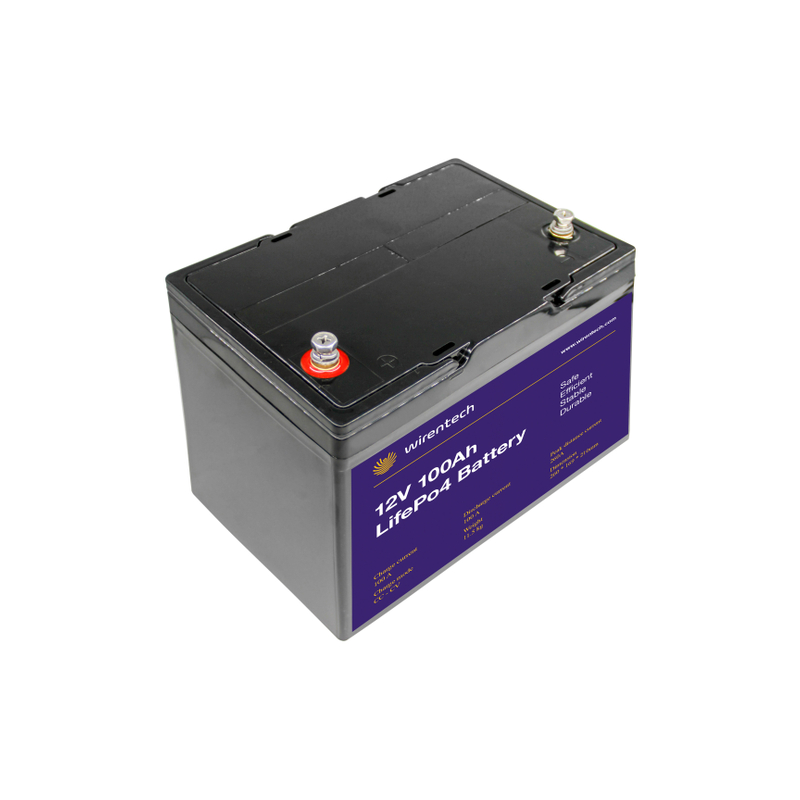

Sixth Generation 12v 100ah backup lithium battery 12.8v 100ah lifepo4 storage battery
We are the best RV battery supplier since 2016,the 12v 100ah lifepo4 battery has been under evolution for almost 5 years,now it becomes the robust guy with advanced BMS,the battery module is 100% fit with Group24 case,withstanding high vibration.
WR12100
WIRENTECH
| Items | Parameter |
| Battery Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Energy | 1.28KWh |
| Internal Resistance | ≤20mΩ |
| Series & Parallel Application | up to 4 series 4 parallel |
| Limited Charge Voltage | 14.6±0.2V |
| Floating Charge Voltage | 13.8±0.2V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 10.0V |
| Standard Charge Current | 50A |
| Max. Charge Current | 100A |
| Standard Continuous Discharge Current | 50A |
| Max. Continuous Discharge Current (<30min) | 100A |
| Pulse Discharge Current (<3s) | 260A |
| Cycle Life | > 5000 cycles |
| Dimension (mm) | Length: 260±2 Width: 171±2 Height: 210±2 |
| Weight | 11.5±0.2Kg |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended Operating Temperature | 15~35℃ |
| Self-Discharge Rate (Residual capacity) | ≤3%/month; ≤15%/years |
| Self-Discharge Rate (Reversible capacity) | ≤1.5%/month; ≤8%/years |
| Storage Temperature & Humidity Range (Less than 1 month) | -20~35℃, 45~75%RH |
| Storage Temperature & Humidity Range (Less than 3 months) | -10~35℃, 45~75%RH |
| Recommended Storage Temperature & Humidity Range | 15~35℃,45~75%RH |
